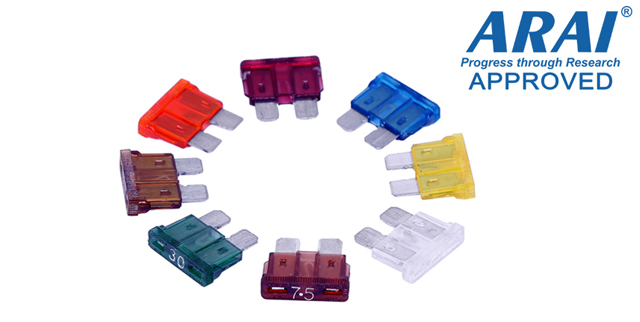

Regular Automotive Fuse

Ultra wiring connectivity System Ltd. has now entered into the Fuse manufacturing business for automotive purpose.

Our plant is equipped with high acquaintance hydro-pneumatic press and fully automatic PLC based Assembly machines. As far as the plastic housing is concerned, we are already pioneers in manufacturing plastic connectors for all the OEMs from past 3 decades.

We have our in-house testing labs for fuses, along with a strong R&D team lead by the highly experienced team of engineers.

ARAI Files Download

Time-Current Characteristic:All ratings

% Of Ampere Rating (A)	Operating Time
% Of Ampere Rating (A)	MIN	MAX
110%	100 hrs .	-
135%	0.75 sec .	600 sec.
160%	0.25 sec .	50 sec .
200%	0.15 sec .	5.0 sec .
350%	0.04 sec .	0.5 sec .
600%	0.02 sec .	0.1 sec.

The fuse characteristic may change depending on the conditions of use.

Product Lineup

Ampere Rating	Part Number	Housing Colors	Resistance Value	Voltage Drop
4	UF104	Pink	22.75 mΩ	128 mV
5	UF105	Tan	17.7 mΩ	121 mV
7.5	UF175	Brown	11.2 mΩ	112 mV
10	UF110	Red	8.20 mΩ	116 mV
15	UF115	Blue	5.12 mΩ	105 mV
20	UF120	Yellow	3.65 mΩ	99 mV
25	UF125	Natural	2.82 mΩ	96 mV
30	UF130	Green	2.29 mΩ	92 mV
35	UF135	Dark Green	1.79 mΩ	91 mV
40	UF140	Orange	1.49 mΩ	95 mV
